The NEW Dragonfly 32 model is an exciting evolution of a popular model with new high-volume wave piercing floats for fast and relaxed sailing.
This new float design improves performance in stronger wind and wave conditions. The famous Dragonfly Quality combined with performance, secures an outstanding experience. The NEW Dragonfly 32 Evolution replaces the former Dragonfly 32 Supreme
Quorning Boats take great pleasure in introducing the Dragonfly 32′ which is going to fill the gap between the Dragonfly 28 and Dragonfly 35. This boat is more like a scaled down Dragonfly 35 though, as the Dragonfly 32 is not trailable like the Dragonfly 28. The boat has a nice big cockpit, which offers space enough for the whole crew. All halyards and lines are led to the cockpit for easy and safe handling – perfect also for shorthanded sailing.
The floats are designed even bigger – compared to our previous design – which makes the boat more powerful and fast. It is undoubtedly the fastest boat in our fleet.
The Dragonfly 32 offers fun and safe family sailing – and, has potential for serious racing and safe fast sailing at the same time.
Like the other Dragonfly models, the Dragonfly 32 appears in two versions – one with a shorter rig “Touring” and one in a more powerful version “Supreme” with a taller rig. The Dragonfly 32 is offered standard with a 25 Hp outboard – optional is a 2-cylinder inboard diesel or electric drive. As standard, the boat is equipped with a tiller, but the cockpit has been designed and developed for wheel steering as well.
The boat offers full standing headroom of 1.93 m in the main cabin – 1.87 m in the toilet section.
Dragonfly 32 – Specifications
Like the other Dragonfly models, the new Dragonfly 32 appears in two versions – one with a shorter rig “Touring” and one in a more powerful version “Evolution, NEW” with a taller rig. The Dragonfly 32 is offered standard with a 25 Hp outboard – optional is a 2-cylinder inboard diesel or electric drive. As standard, the boat is equipped with a tiller, but the cockpit has been designed and developed for wheel steering as well.

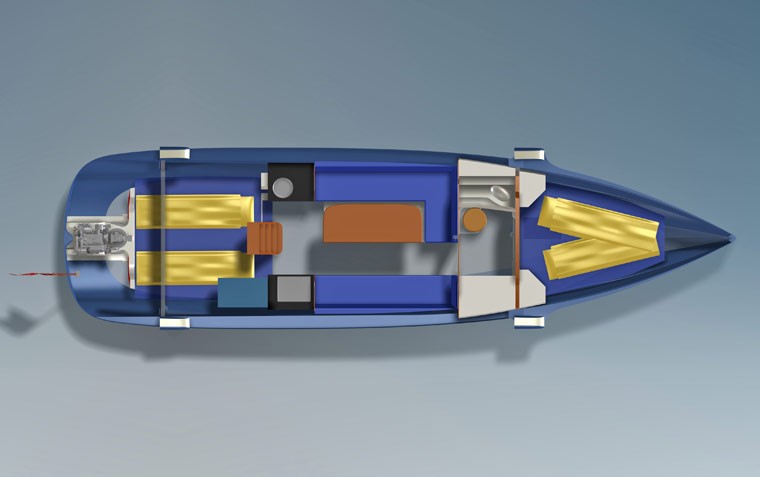

The boat comes with 6 full-size berths – with a big double V-berth up front, two bigger size easy-foldable single berths in the main cabin as well as a “king size” comfortable double berth in the aft cabin.
The interior design layout is similar to the Dragonfly 35 Classic version. The standard version is in maple wood, whereas the high-end luxury teakwood interior is optional.
The main dinette table can seat 6 to 8 people comfortably. The galley is located centrally by the companionway on each side and is a well-functional and convenient pantry providing good ergonomics.
| SPECIFICATIONS DRAGONFLY 32 | TOURING | Evolution NEW |
| Length overall centre hull | 9.80 M | 9.80 M |
| Length waterline centre hull | 9.50 M | 9.50 M |
| Length folded | 11.99 M | 11.99 M |
| Beam sailing | 8.00 M | 8.00 M |
| Beam folded | 3.70 M | 3.70 M |
| Draft | 0.50 M | 0.55 M |
| Draft incl. centerboard | 1.9 M | 1.9 M |
| Weight, basic boat incl. sails, standard batteries and outboard engine. excl. fuel, water, anchor equipment, personal gear and other extra options |
3,300 Kgs | 3,300 Kgs |
| Payload incl. crew | 1,200 Kgs | 1,200 Kgs |
| Max. total weight excl. crew | 3,700 Kgs | 3,700 Kgs |
| Watertank | 120 L | 120 L |
| Holdingtank | 60 L | 60 L |
| Fuel tank – gasoline (outboard) | 25 L | 25 L |
| Fuel tank – diesel (optional) | 60 L | 60 L |
| Max. outboard engine | 30 Hp/22kW | 30 Hp/22kW |
| Max. inboard engine | 20 Hp/13.5kW | 20 Hp/13.5kW |
| Mast section total excl. antennas | 14.70 M | 16.20 M |
| Mainsail | 44 M2 | 55 M2 |
| Standard genoa | 27 M2 | 30 M2 |
| Spinnaker asymmetric | 80 M2 | 110 M2 |
| Code-O furling | 55 M2 | 66 M2 |
| Bowsprit length | 1.75 M | 2.00 M |
| Unsinkable | Yes | Yes |
| Max. persons CE category-A | 5 | 5 |
| Max. persons CE category-B | 7 | 7 |
